Thunder Inverter

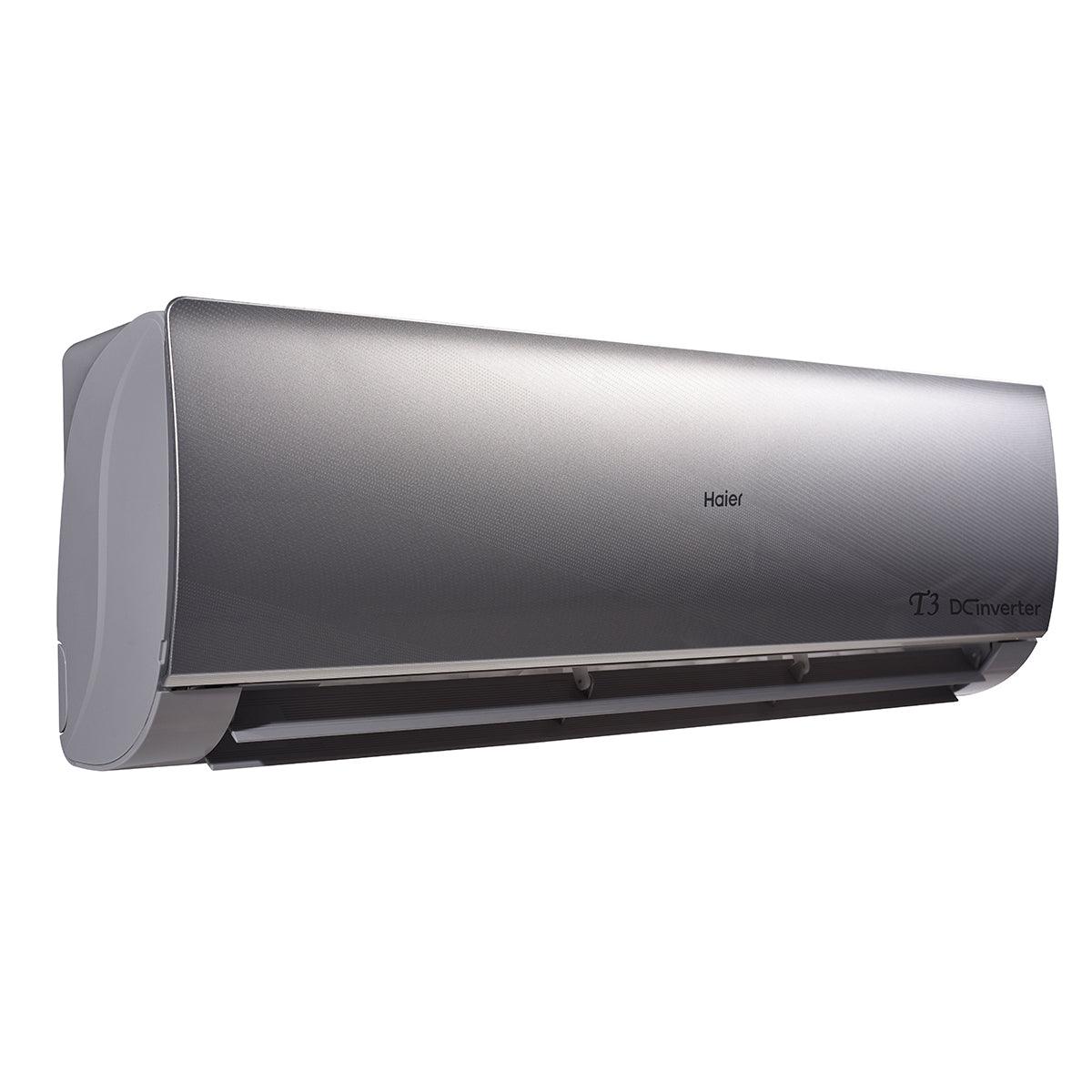

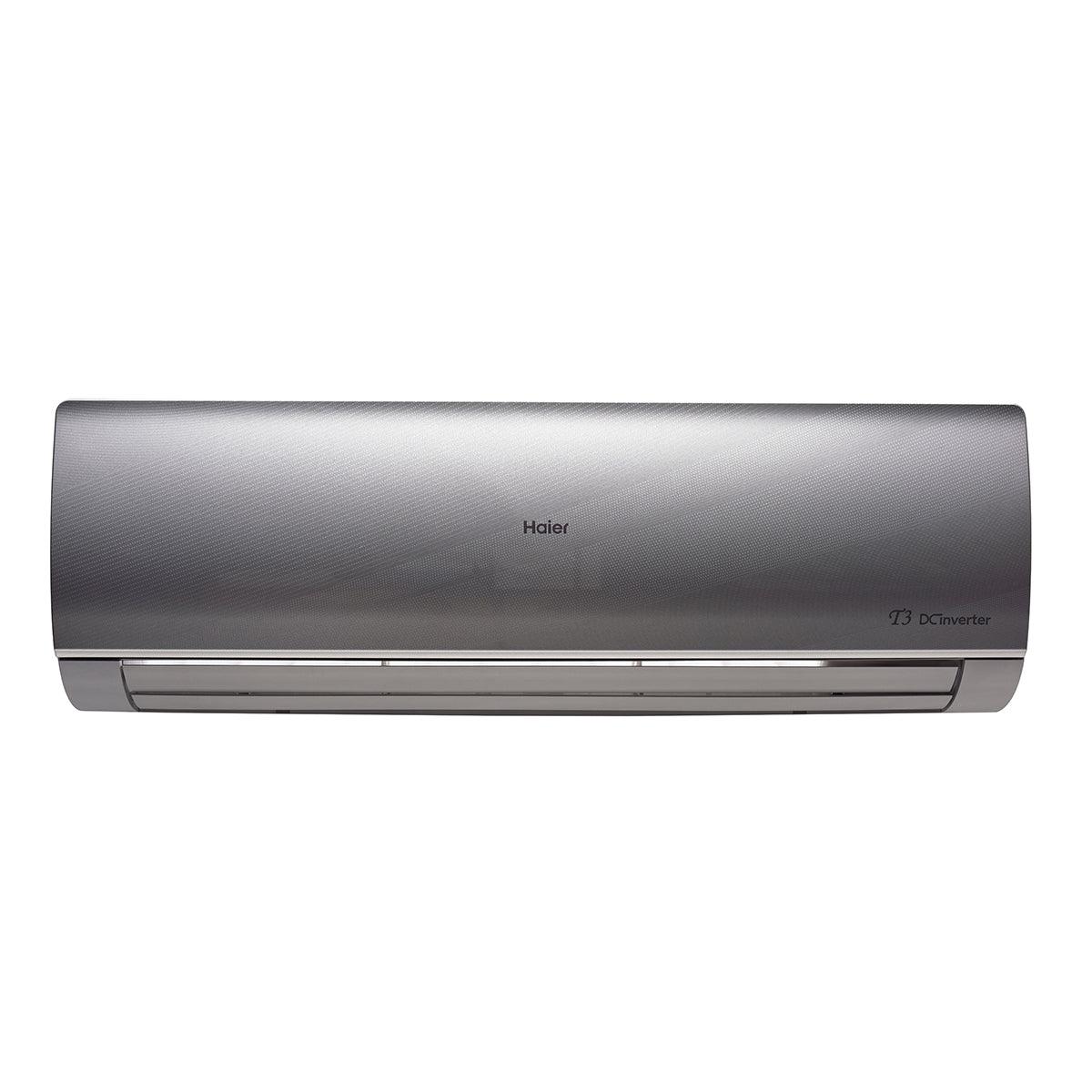

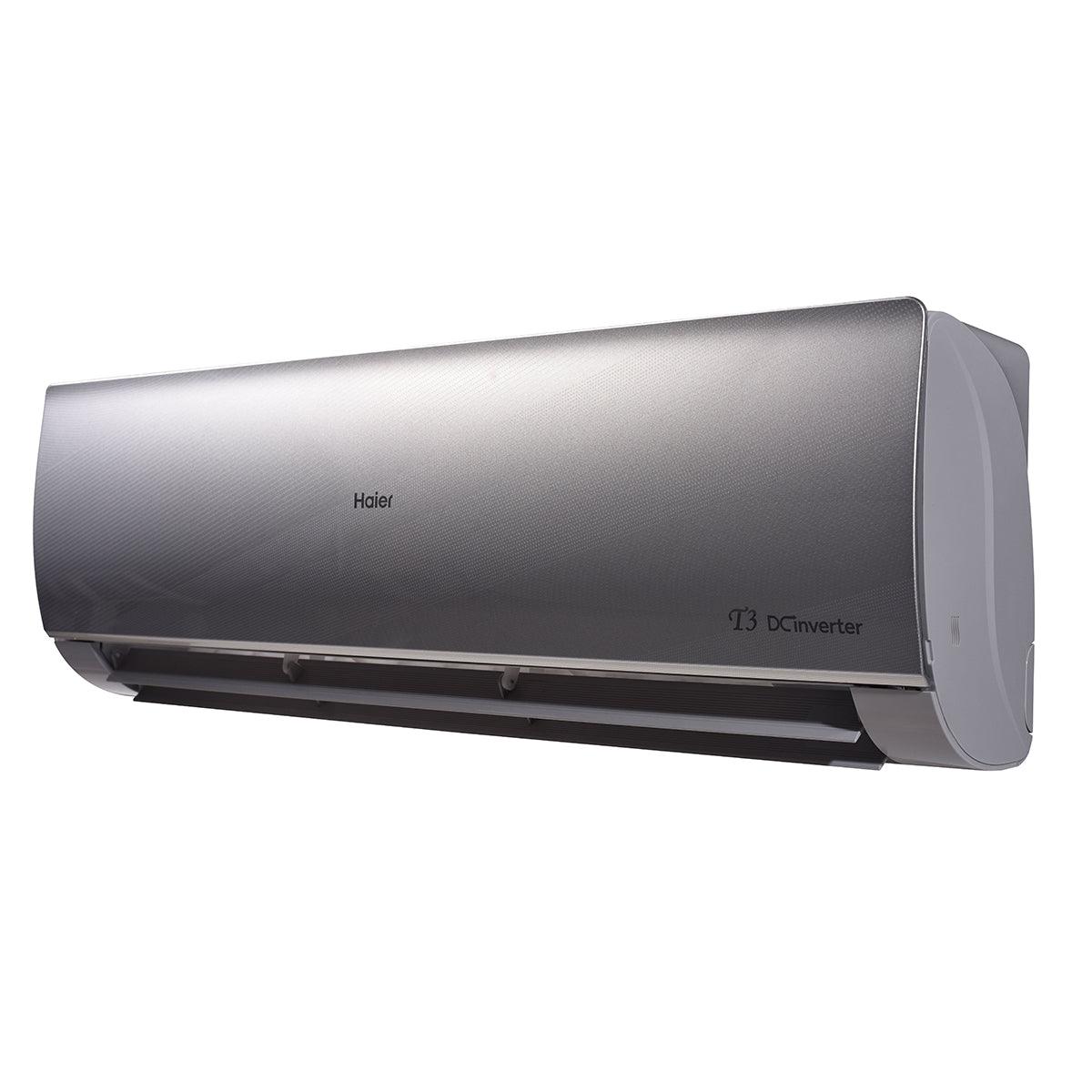

The Haier HSU-12HFTCA/WSDC(S)-T3 1 Ton Inverter AC offers efficient cooling and heating with 13,000 BTU cooling and 13,500 BTU heating capacity. Its DC inverter technology ensures energy savings and precise temperature control, while 1,150 m³/h air circulation enables rapid cooling for larger spaces. Auto-swing louvers, Wi-Fi connectivity, and self-cleaning enhance convenience, and anti-corrosion materials with Hyper PCB technology ensure durability. Backed by a 10-year compressor warranty, this AC delivers long-lasting performance and comfort year-round.

Performance Specifications

Capacity wise:
1.0-Ton

Category wise:
DC Inverter

Color:
Silver

Cooling Capacity BTU:
12000

Running Current Cooling (A):
2.3 ~ 8.8

Power input Cooling (KW):
0.41 ~ 1.95

Heating Capacity BTU:
12500

Running Current Heating (A):
2.4 ~ 10.87

Power Input Heating (KW):
0.42 ~ 2.25

Other Parameters

Input Power Supply (Ph, VAC, Hz):
1PH, 220V, 50Hz

Air Flow Volume (m3/h):
1150

Refrigerant Type:
R-410a

Refrigerant Amount (G):
1450 g

Indoor & Outdoor Parameters

Indoor Net Dimension (L*W*H) mm³:
1015*225*325

Indoor Packing Net Dimension (L*W*H) mm³):
1090*415*313

Indoor Net Weight (kg):
14.4

Indoor Gross Weight (kg):
17.7

Outdoor Net Dimension (L*W*H) mm³:
895*342*695

Outdoor Packing Net Dimension (L*W*H) mm³:
1046*460*780

Outdoor Net Weight (kg):
42

Outdoor Gross Weight (kg):
48

Features

Cooling:
Yes

Heating:
Yes

Dry:
Yes

Vertical Flapper Auto Swing:
Yes

Horizontal Louvers Auto Swing:
Yes

WiFi:
Yes

Self-Clean:
Yes

Anti-Corrosion:
Yes

Turbo Function:
Yes

UPS Enable:
No

Accessories

Installation Kit (Liquid side) Material*Length*Dia*Thickness (mm):
Copper * 2920*6*0.65 (6mm)

Installation Kit (Gas side) Material*Length*Dia*Thickness (mm):
Copper * 2920*12*0.65 (12mm)

Power Cable (Core*mm²):
No

Communication Cable b/w Indoor & Outdoor (Core*mm²):
4*1.5

Warranty

Compressor:
10 Years

PCB Kit:
4 Years

Parts:
1 Years
