Thunder Inverter

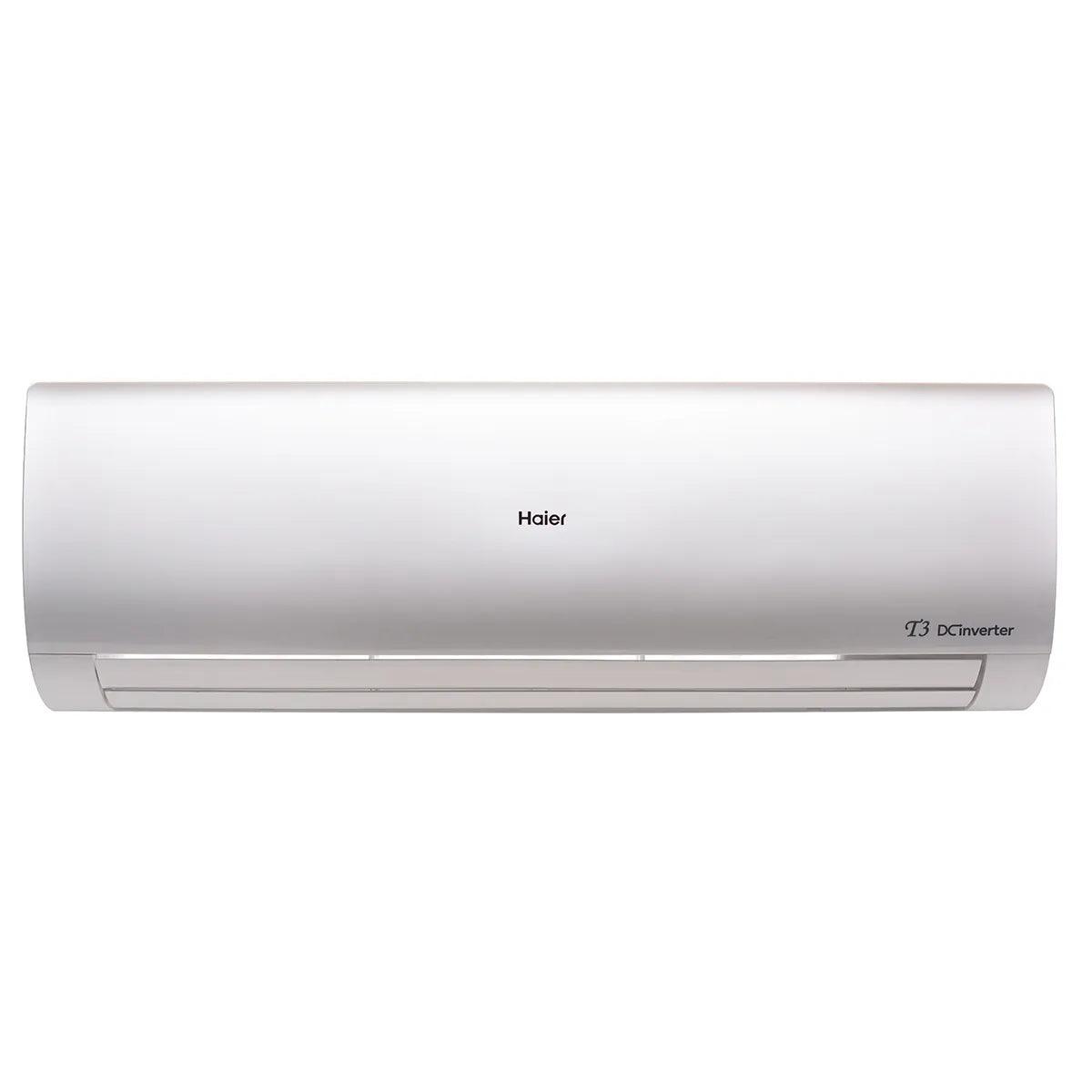

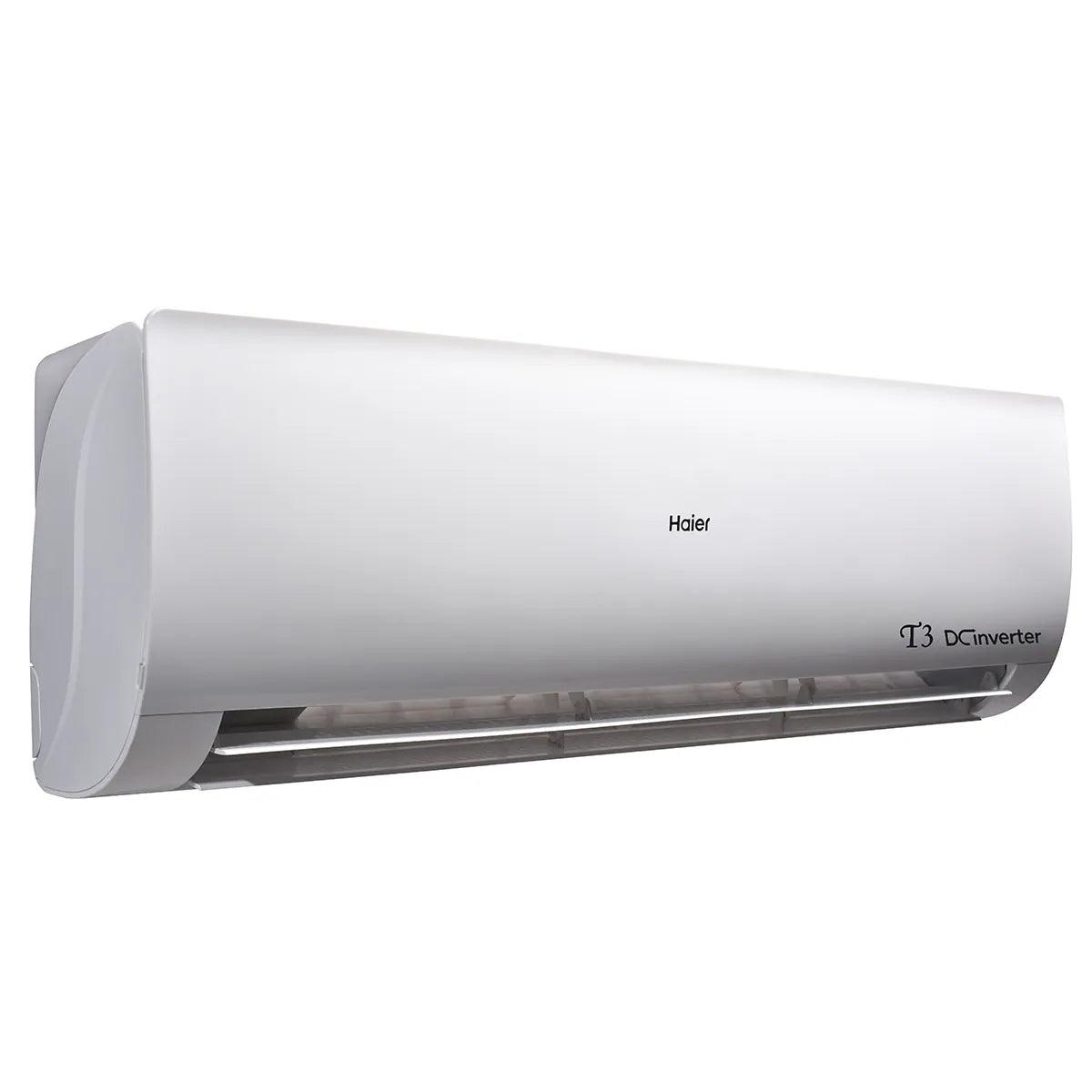

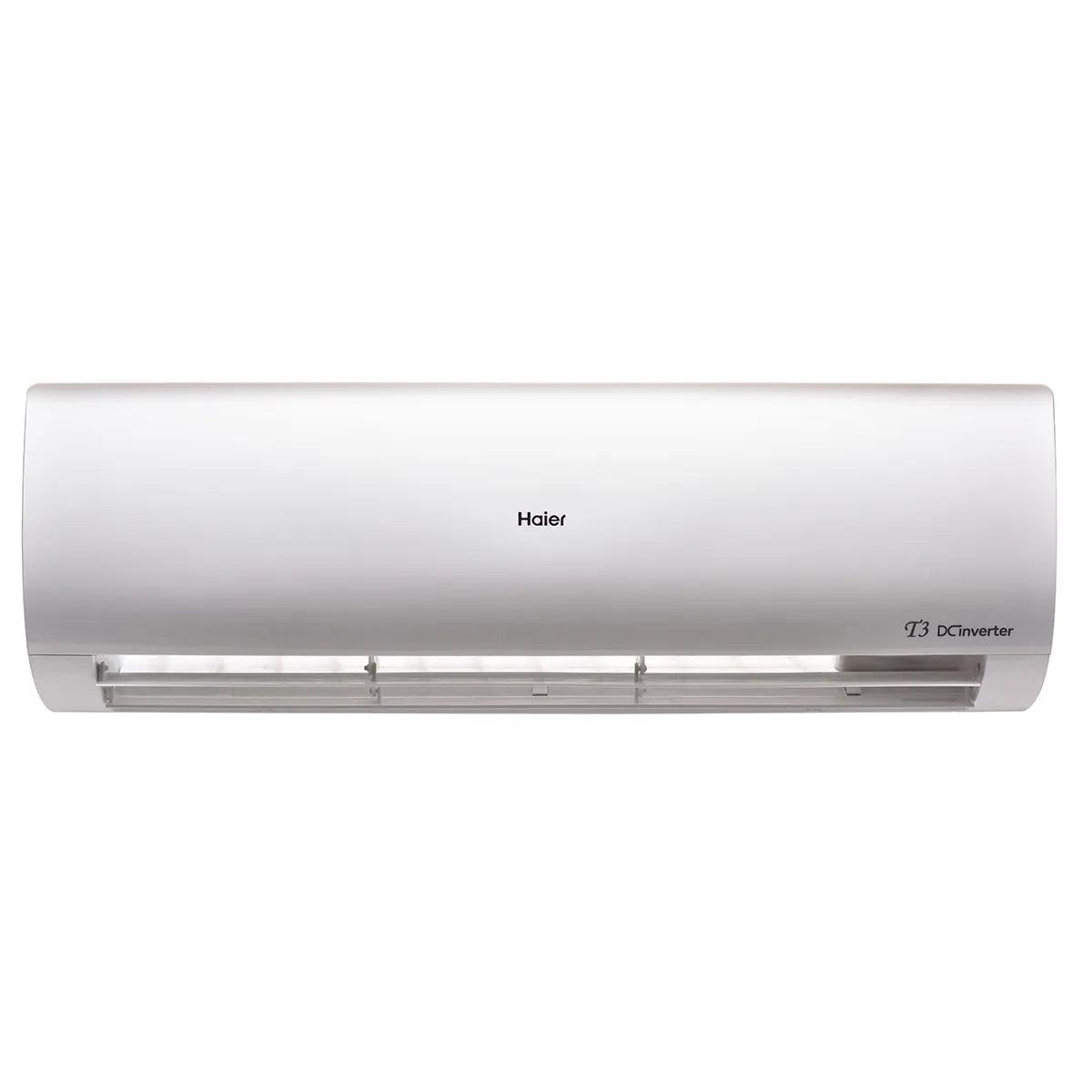

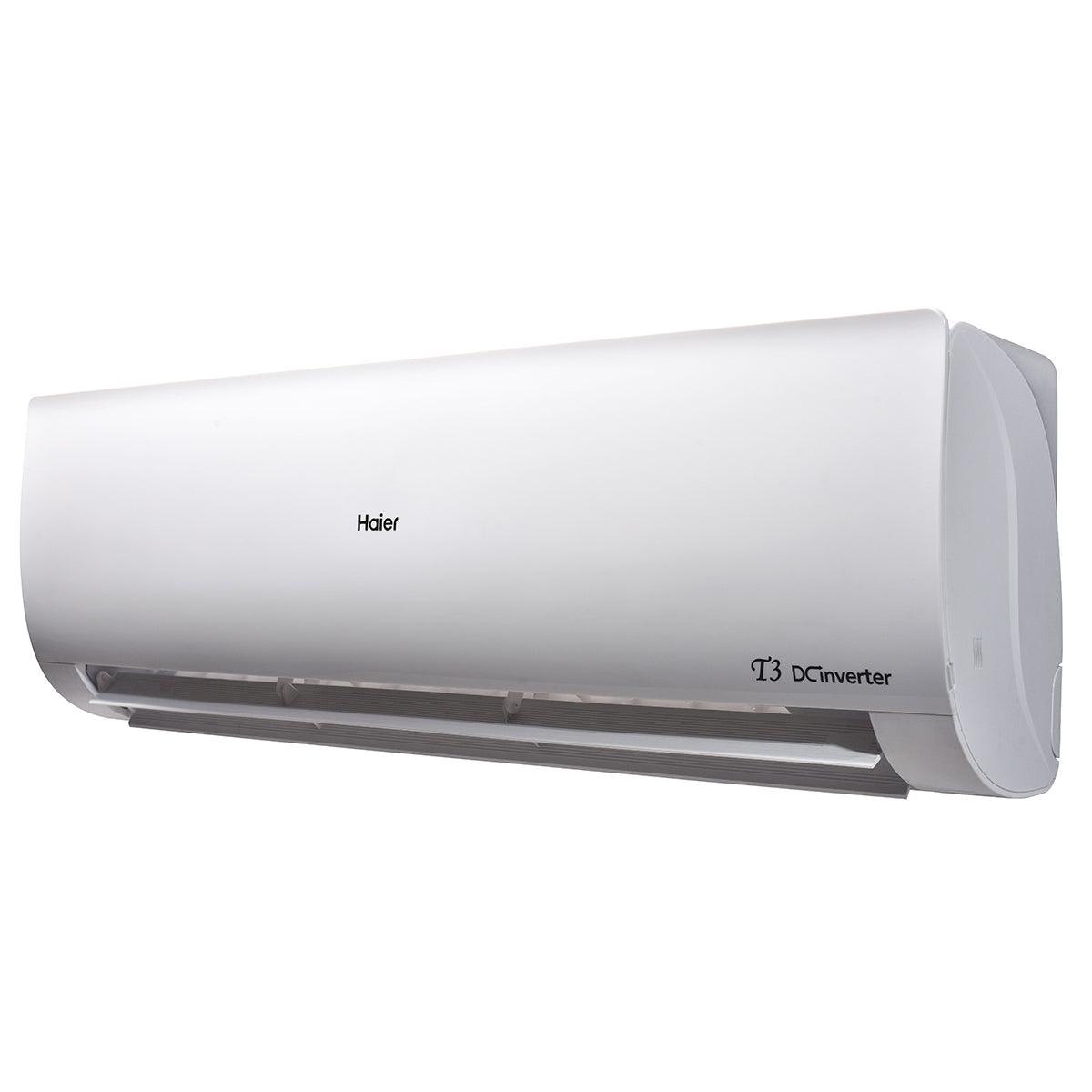

The Haier HSU-12HFTCD/WSDC(W)-T3 1 Ton Inverter AC delivers efficient cooling and heating with 12,000 BTU cooling and 13,000 BTU heating capacity. Featuring T3 inverter technology, it adjusts output based on ambient conditions for optimal comfort and energy savings. Designed for high-temperature climates, it ensures consistent performance while an air filtration system removes dust and allergens. With intuitive remote control and durable construction, this AC is built for long-term reliability. Backed by a comprehensive warranty, it’s a smart choice for modern climate control needs.

Performance Specifications

Capacity wise: 1-Ton

Category wise: DC Inverter

Color: White

Cooling Capacity BTU: 13800

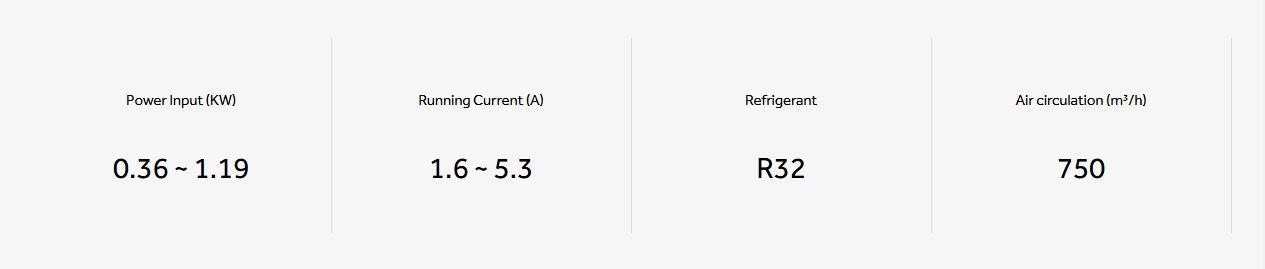

Running Current Cooling (A): 1.6 ~ 5.3

Power input Cooling (KW): 0.36 ~ 1.19

Heating Capacity BTU: 14700

Running Current Heating (A): 2.8 ~ 6.0

Power Input Heating (KW): 0.57 ~ 1.35

Other Parameters

Input Power Supply (Ph, VAC, Hz): 1PH, 230V, 50Hz

Air Flow Volume (m3/h): 750

Refrigerant Type: R-32

Refrigerant Amount (G): 800 g

Indoor & Outdoor Parameters

Indoor Net Dimension (L*W*H) mm³: 850*295*210

Indoor Packing Net Dimension (L*W*H) mm³): 952*389*283

Indoor Net Weight (kg): 11.5

Indoor Gross Weight (kg): 14.1

Outdoor Net Dimension (L*W*H) mm³: 800*345*560

Outdoor Packing Net Dimension (L*W*H) mm³: 908*405*625

Outdoor Net Weight (kg): 28

Outdoor Gross Weight (kg): 31

Features

Cooling: Yes

Heating: Yes

Dry: Yes

Vertical Flapper Auto Swing: Yes

Horizontal Louvers Auto Swing: Yes

WiFi: Yes

Self-Clean: Yes

Anti-Corrosion: Yes

Turbo Function: Yes

Accessories

Installation Kit (Liquid side) Material*Length*Dia*Thickness (mm): Copper * 2920*6*0.65 (6mm)

Installation Kit (Gas side) Material*Length*Dia*Thickness (mm): Copper * 2920*9*0.65 (9mm)

Power Cable (Core*mm²): No

Communication Cable b/w Indoor & Outdoor (Core*mm²): 4*1.5

Warranty

Compressor: 10 Years

PCB Kit: 4 Years

Parts: 1 Year
