Thunder Inverter

The Haier HSU-18HFTCD/WSDC(W)-T3 is a 1.5-ton DC inverter AC with 21,000 BTU cooling & 20,200 BTU heating capacity. It offers 60% energy savings, Hyper PCB technology for durability, and an anti-corrosion design for harsh climates. Features include Wi-Fi control, auto-swing louvers, and a self-cleaning function for easy maintenance. Backed by a 10-year compressor warranty, it ensures efficient and reliable performance year-round.

Performance Specifications

Capacity wise: 1.5-Ton

Category wise: DC Inverter

Color: White

Cooling Capacity BTU: 21100

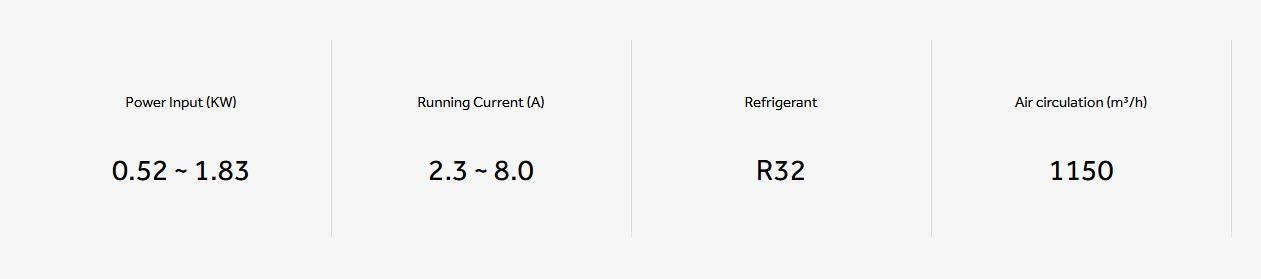

Running Current Cooling (A): 2.3 ~ 8.0

Power input Cooling (KW): 0.52 ~ 1.83

Heating Capacity BTU: 20200

Running Current Heating (A): 2.4 ~ 8.4

Power Input Heating (KW): 0.42 ~ 1.93

Other Parameters

Input Power Supply (Ph, VAC, Hz): 1PH, 230V, 50Hz

Air Flow Volume (m3/h): 1150

Refrigerant Type: R-32

Refrigerant Amount (G): 1200 g

Indoor & Outdoor Parameters

Indoor Net Dimension (L*W*H) mm³: 1015*325*225

Indoor Packing Net Dimension (L*W*H) mm³): 1090*415*313

Indoor Net Weight (kg): 14.4

Indoor Gross Weight (kg): 17.7

Outdoor Net Dimension (L*W*H) mm³: 815*310*630

Outdoor Packing Net Dimension (L*W*H) mm³: 942*392*693

Outdoor Net Weight (kg): 37.5

Outdoor Gross Weight (kg): 41.5

Features

Cooling: Yes

Heating: Yes

Dry: Yes

Vertical Flapper Auto Swing: Yes

Horizontal Louvers Auto Swing: Yes

WiFi: Yes

Self-Clean: Yes

Anti-Corrosion: Yes

Turbo Function: Yes

UPS Enable: No

Accessories

Installation Kit (Liquid side) Material*Length*Dia*Thickness (mm): Copper * 2920*6*0.65 (6mm)

Installation Kit (Gas side) Material*Length*Dia*Thickness (mm): Copper * 2920*12*0.65 (12mm)

Power Cable (Core*mm²): No

Communication Cable b/w Indoor & Outdoor (Core*mm²): 4*2.5

Warranty

Compressor: 10 Years

PCB Kit: 4 Years

Parts: 1 Years
